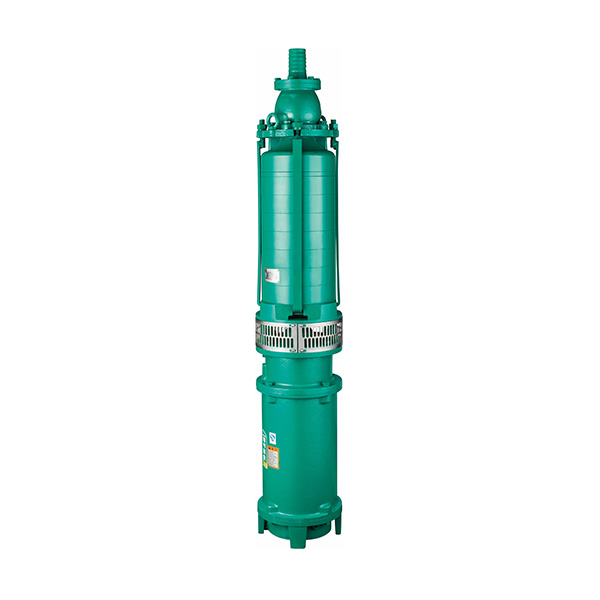

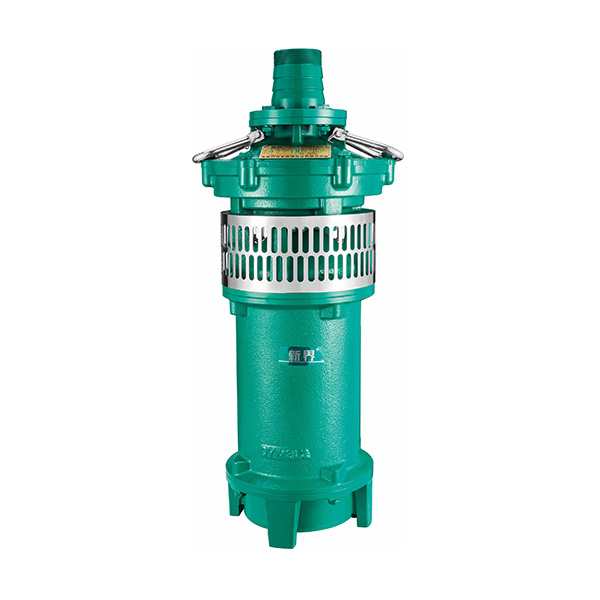

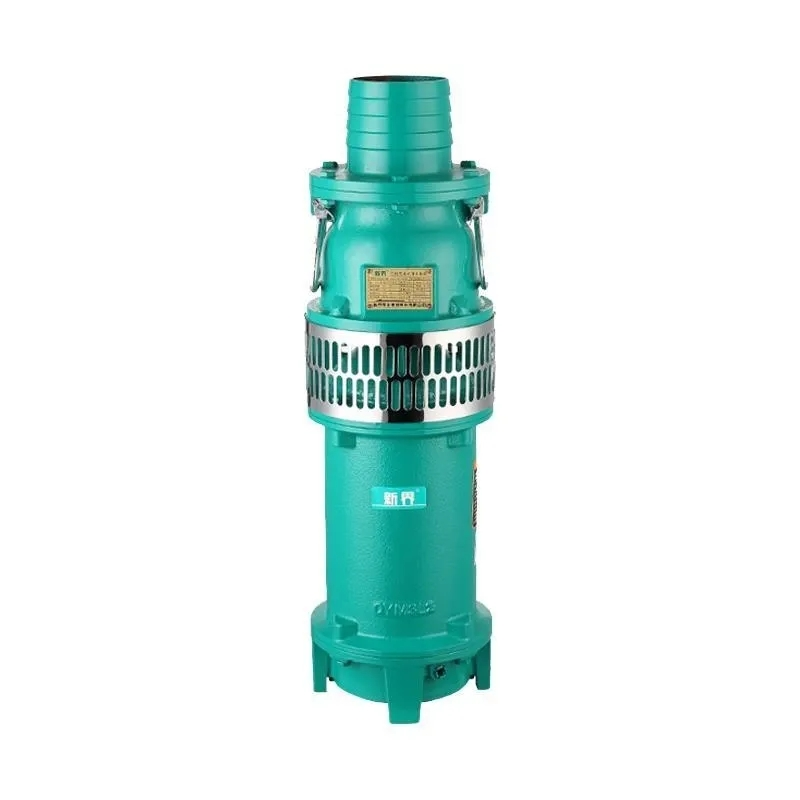

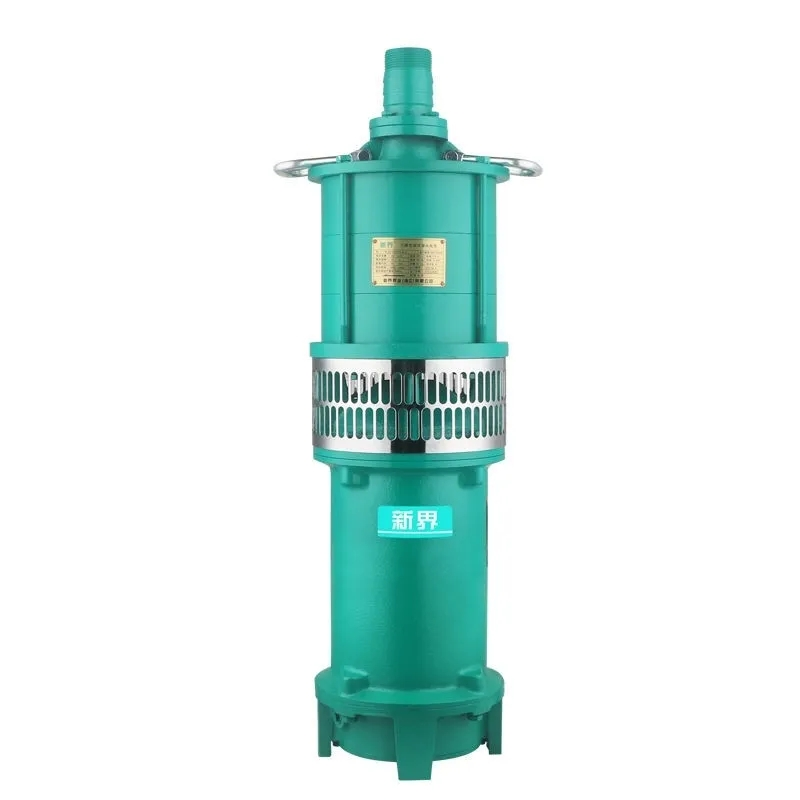

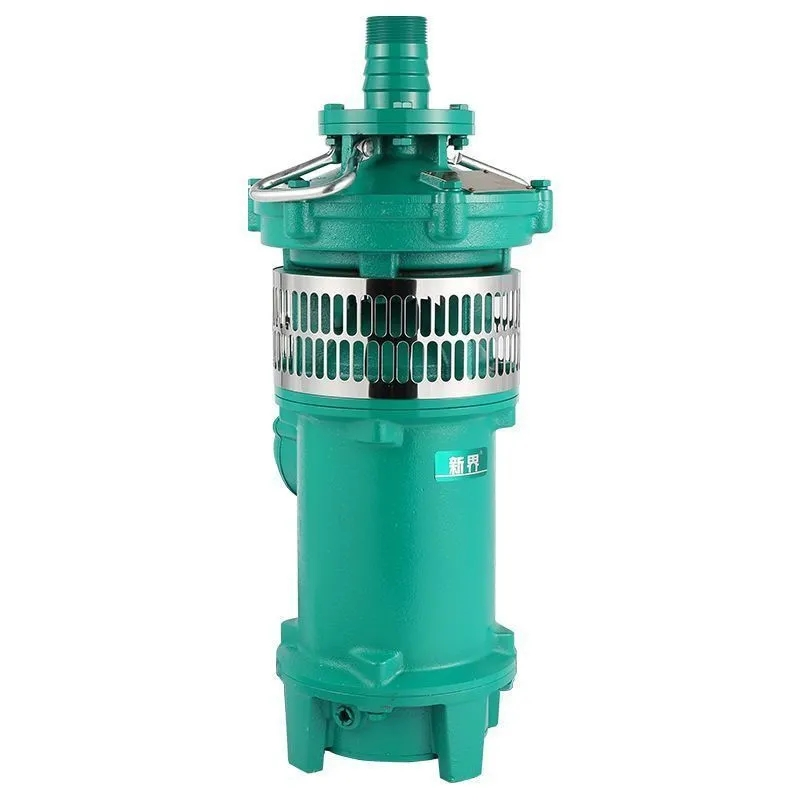

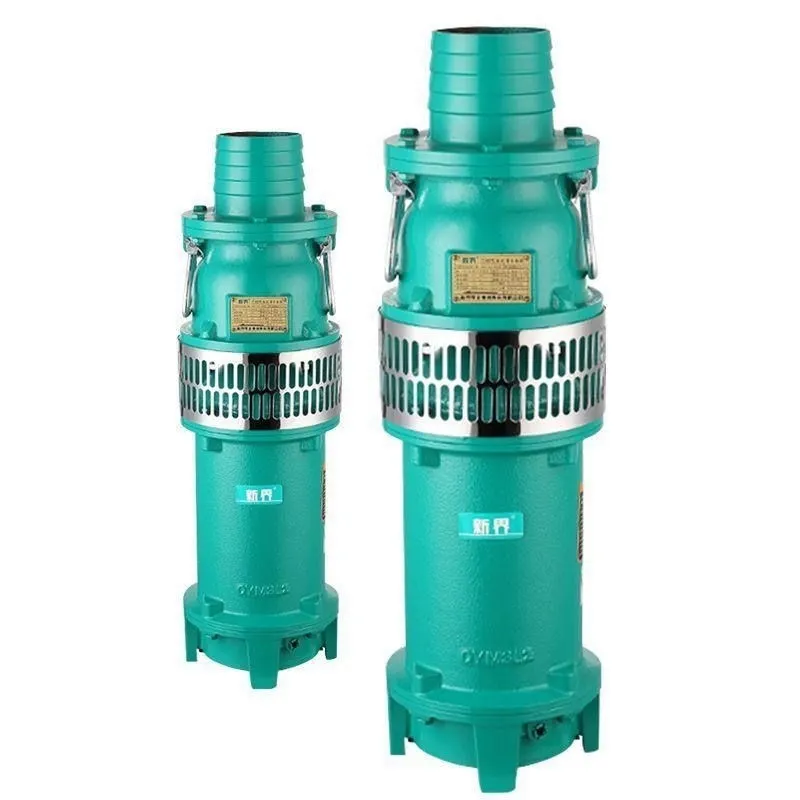

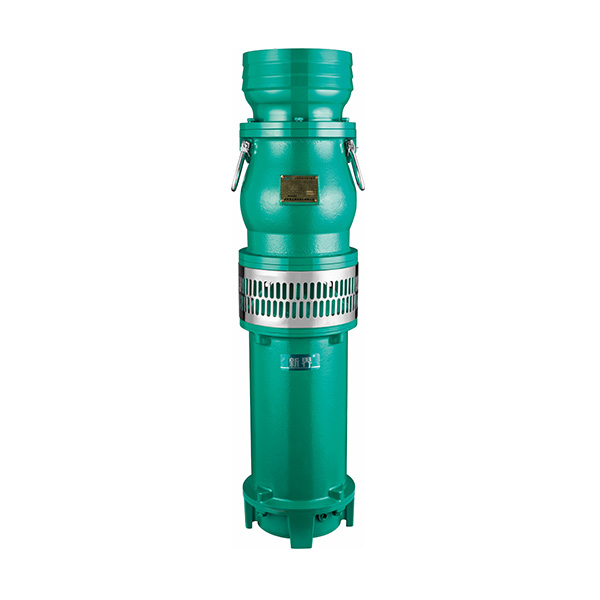

SHIMGE QY Series Oil-Filled Submersible Pump

QY15-26-2.2L3|QY25-17-2.2L3|QY65-7-2.2L3|QY100-4.5-2.2Z4|QY10-51/3-3L3|QY15-36-3L3|QY25-26-3L3|QY40-16-3L3|QY65-10-3L3|QY100-6-3Z4|QY160-4-3Z3|QY30-30-3.7L3|QY10-60/2-4L3|QY15-48/2-4L3|QY20-40/2-4L3|QY40-21-4L3|QY65-14-4L3|QY100-9-4L3|QY160-6-4Z3|QY200-4-4Z3|QY10-83/3-5.5L1

SHIMGEe Pump Industry’s QY series oil-filled submersible pump is an integrated electric drainage and irrigation unit combining a pump and a three-phase asynchronous motor,it features a compact structure,high energy efficiency,and excellent watertight sealing. Comprising a pump,a sealing system,and a motor,the unit is designed to be compact and lightweight,making it easy to install and transport. It is widely used in applications such as agricultural drainage and irrigation

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Applications:

Garden irrigation, agricultural irrigation and drainage, well water extraction, industrial water supply and drainage, fountain landscapes, musical fountains, and circulation pumps for water features.

Operating Conditions:

1. Submergence depth: 0.5 m to 5 m.

2. Medium pH value: 6.5 to 8.5.

3. Medium temperature: Not exceeding +40°C.

4. Impurity content in the medium: Volume ratio not exceeding 0.1%; particle size not exceeding 0.2 mm.

5. Power supply: Rated frequency of 50 Hz; rated voltage of 380 V (three-phase); voltage fluctuation range within ±10% of the rated value.

Parameters

Specifications and Model	Rated flow rate (m³/h)	Rated Head (m)	Rated Power (kW)	Rated voltage (V)	Current (A)	Pipe diameter (mm)	Overall dimensions (mm)	Net Weight (kg)	Head operating range (m)
QY15-26-2.2L3	15	26	2.2	380	5.4	51	265*570	44	Total head
QY25-17-2.2L3	25	17	2.2	380	5.4	64	255*550	44	Total head
QY65-7-2.2L3	65	7	2.2	380	5.4	102	240*605	46	Total head
QY100-4.5-2.2Z4	100	4.5	2.2	380	5.4	152	240*635	45	1.5-4.5
QY10-51/3-3L3	10	51	3	380	7.2	51	245*700	61	45-60
QY15-36-3L3	15	36	3	380	7.2	51	290*595	53	Total head
QY25-26-3L3	25	26	3	380	7.2	64	265*585	49	Total head
QY40-16-3L3	40	16	3	380	7.2	76	265*600	49	Total head
QY65-10-3L3	65	10	3	380	7.2	102	240*630	48	Total head
QY100-6-3Z4	100	6	3	380	7.2	152	240*660	52	1.5-6
QY160-4-3Z3	160	4	3	380	7.2	152	245*685	51	1.5-4
QY30-30-3.7L3	30	30	3.7	380	8.7	64	260*625	59	18-32
QY10-60/2-4L3	10	60	4	380	9.3	51	270*670	66	45-61
QY15-48/2-4L3	15	48	4	380	9.3	51	270*680	62	Total head
QY20-40/2-4L3	20	40	4	380	9.3	64	270*675	64	Total head
QY40-21-4L3	40	21	4	380	9.3	76	265*635	55	Total head
QY65-14-4L3	65	14	4	380	9.3	102	280*675	59	8-20
QY100-9-4L3	100	9	4	380	9.3	152	255*695	61	Total head
QY160-6-4Z3	160	6	4	380	9.3	152	250*725	54	2.5-6
QY200-4-4Z3	200	4	4	380	9.3	203	250*740	60	2.5-4
QY10-83/3-5.5L1	10	83	5.5	380	12.6	51	265*960	106	62-86
QY15-68/4-5.5L1	15	68	5.5	380	12.6	64	265*805	100	28-87
QY25-40-5.5L1	25	40	5.5	380	12.6	64	265*675	83	33-43
QY40-28-5.5L1	40	28	5.5	380	12.6	76	265*680	84	19-34
QY65-18-5.5L2	65	18	5.5	380	12.6	102	265*720	84	Total head
QY100-13-5.5L1	100	13	5.5	380	12.6	152	265*750	82	Total head
QY160-8-5.5Z2	160	8	5.5	380	12.6	152	265*785	81	1.5-8
QY200-6-5.5Z1	200	6	5.5	380	12.6	203	265*785	81	0-6
QY250-5-5.5Z1	250	5	5.5	380	12.6	203	275*815	82	3.5-5
QY350-3.5-5.5Z1	350	3.5	5.5	380	12.6	203	278*815	86	2-3.5
QY10-110/4-7.5L1	10	110	7.5	380	16.8	51	265*1060	147	84-115
QY15-95/4-7.5L1	15	95	7.5	380	16.8	64	275*1065	128	80-98
QY18-84/4-7.5L1	18	84	7.5	380	16.8	64	275*1065	128	70-88
QY25-60/2-7.5L1	25	60	7.5	380	16.8	64	290*815	104	45-66
QY40-38-7.5L1	40	38	7.5	380	16.8	76	265*725	85	28-44
QY50-30-7.5L1	50	30	7.5	380	16.8	76	295*750	90	Total head
QY65-25-7.5L2	65	25	7.5	380	16.8	102	265*785	86	Total head
QY80-20-7.5L1	80	20	7.5	380	16.8	102	265*750	84	Total head
QY100-17-7.5L1	100	17	7.5	380	16.8	152	265*805	89	Total head
QY160-11-7.5Z1	160	11	7.5	380	16.8	152	265*885	96	2.5-11
QY200-9-7.5Z1	200	9	7.5	380	16.8	203	265*900	96	3-9
QY250-7-7.5Z1	250	7	7.5	380	16.8	203	255*890	91	3-7
QY10-165/6-11L1	10	165	11	380	24.3	51	265*1200	151	130-170
QY15-142/6-11L1	15	142	11	380	24.3	64	265*1205	153	130-157
QY18-126/6-11L1	18	126	11	380	24.3	64	265*1205	153	105-130
QY25-90/3-11L1	25	90	11	380	24.3	64	290*915	122	68-95
QY40-56/2-11L1	40	56	11	380	24.3	76	290*825	109	Total head
QY65-42/2-11L1	65	42	11	380	24.3	102	305*885	111	Total head
QY100-25-11L1	100	25	11	380	24.3	102	265*820	108	Total head
QY160-15-11L1	160	15	11	380	24.3	152	280*890	102	10-20
QY350-7-11Z1	350	7	11	380	24.3	203	275*925	102	2.5-7
QY450-6-11Z1	450	6	11	380	24.3	253	310*1025	118	0-7.5
QY600-4.5-11/4Z1	600	4.5	11	380	24.3	356	440*1250	182	2-4.5
QY25-120/4-15L1	25	120	15	380	33	64	325*1180	194	100-132
QY40-84/3-15L1	40	84	15	380	33	76	325*990	173	67-97
QY65-60/3-15L1	65	60	15	380	33	102	325*1085	177	48-78
QY100-36-15L1	100	36	15	380	33	102	340*910	158	Total head
QY160-23-15L1	160	23	15	380	33	152	350*960	165	Total head
QY250-14-15L1	250	14	15	380	33	203	320*1075	161	Total head
QY600-6.5-15/4Z1	600	65	15	380	33	356	440*1320	213	1-6.5
QY15-200/8-18.5L1	15	200	18.5	380	40.5	51	320*1480	249	Total head
QY25-135/4-18.5L1	25	135	18.5	380	40.5	64	325*1220	203	105-142
QY65-69/3-18.5L1	65	69	18.5	380	40.5	102	325*1125	192	Total head
QY80-50-18.5L1	80	50	18.5	380	40.5	102	340*950	170	Total head
QY160-28-18.5L1	160	28	18.5	380	40.5	152	350*1000	176	Total head
QY250-18-18.5L1	250	18	18.5	380	40.5	203	320*1115	176	Total head
QY800-6-18.5/4Z1	800	6	18.5	380	40.5	356	440*1280	275	1-6.5
QY25-180/4-22L1	25	180	22	380	48	64	325*1320	259	114-183
QY40-114/3-22L1	40	114	22	380	48	76	325*1270	232	70-127
QY65-84/4-22L1	65	84	22	380	48	102	325*1240	223	Total head
QY200-26-22L1	200	26	22	380	48	152	320*1145	188	Total head
QY250-22-22L1	250	22	22	380	48	203	320*1145	188	Total head
QY800-7.5-22/4Z1	800	7.5	22	380	48	356	440*1320	295	1-7.5
